PRODUCT FEATURES

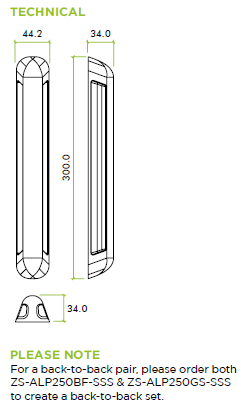

• Length: 300mm
• Width: 44mm
• Projection: 34mm
• Centres: 250mm
• Material: Grade 304 Stainless Steel
• Security bolt fixings supplied
• BF = Bolt-fix single side
• GS = Grub screw side to make up back-to-back set
FIRE TESTING
• Successfully fire tested in accordance with the
requirements of BS EN 1634-1, suitable for use
on timber fire doors upto 30 and 60 minutes
ANTI-LIGATURE TESTING
• Independently tested in accordance with DHF
Technical Specification TS001:2013 Enhanced
Requirements & Test Methods for Anti-Ligature
Hardware and passed with the highest rating:
A4 – 0.5mm ligature
