FEATURES & FUNCTIONS

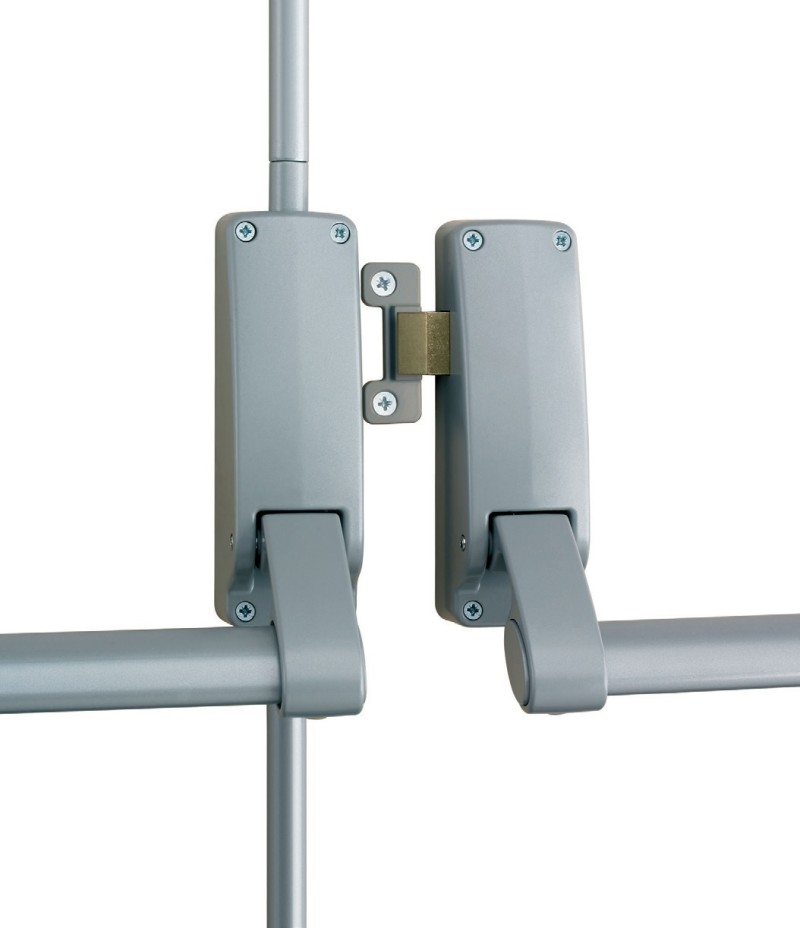

• Surface mounted panic exit combination to suit rebated double doors.
• Complete kit comprising of PH.902 vertical panic bolt, PH.901 rim
panic latch and 378DDS double door strike.
• Suitable for rebated double doors with the rim latch fitted to the first
opening leaf
• Designed to satisfy panic or emergency exit applications
• Suitable for use on fire & smoke doors 1330mm to 2600mm wide
• Site reversible - easy to hand on site
• Three-point locking for extra security
• Tubular steel cross bar and vertical shoots can be cut on-site to suit
door width and height
• Adjustable top and bottom shoots
• Tested in excess of 200,000 cycles
• All versions supplied with fixings and self-adhesive “Push Bar to Open”
signage

CERTIFICATION
• CE Marked to EN 1125 (2812-CPR-AAA0011)
• Certifire Approved (CF5506)
• Fire tested to EN 1634-1 on timber doors to achieve a 1 hour fire
rating, and 2 hours for metal doors
• Environmental Product Declaration in accordance with ISO 14025
and EN 15803
• DoP available at www.bossdoorcontrols.com
