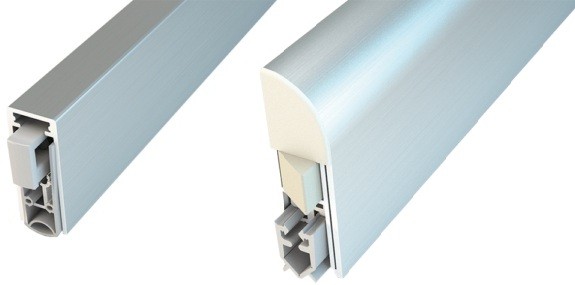

NOR820 Retro Fit Drop Seal
Code: NOR820
£45.30
NOR820 Retro drop seal. Meets smoke requirements to BS 8214 and is acoustically tested in accordance with BS EN ISO 10140-2. Certifire CF629 Fixing screws are provided.
400MM
500MM
600MM
700MM
800MM
900MM
1000MM
1100MM
1200MM

Technical Data

Manufacturer Data Sheet

Application

Bottom edge of acoustic timber or metal doorsets

Fixing

Screw-fixed

Performance

Meets smoke requirements BS 8214
Acoustically tested in accordance with BS EN ISO 10140-2

Standard Lengths (mm)

400, 500, 600, 700, 800, 900, 1000, 1100, 1200

Actuation

Single

Material

Aluminium, PVC gasket


Size(s) (mm)

13.5×44

Colour(s)

Satin Silver, Grey gasket

Maximum Gap Coverage (mm)

12

Cutback (mm)

125, 130 (400 length only)
Installation of the NOR820 drop seal provides smoke and acoustic performance without the removal of timber from the door. Fitting of the seal is not detrimental to the doors performance for fire resistance.

Door manufacturers such as Falcon Strebord, Halspan, Flamebreak etc advise: Surface mounted automatic drop seals may be used where the fitting of these does not require the removal of any core material.



Technical Data

Manufacturer Data Sheet

Application

Bottom edge of acoustic timber or metal doorsets

Fixing

Screw-fixed

Performance

Meets smoke requirements BS 8214
Acoustically tested in accordance with BS EN ISO 10140-2

Standard Lengths (mm)

400, 500, 600, 700, 800, 900, 1000, 1100, 1200

Actuation

Single

Material

Aluminium, PVC gasket


Size(s) (mm)

13.5×44

Colour(s)

Satin Silver, Grey gasket

Maximum Gap Coverage (mm)

12

Cutback (mm)

125, 130 (400 length only)
Installation of the NOR820 drop seal provides smoke and acoustic performance without the removal of timber from the door. Fitting of the seal is not detrimental to the doors performance for fire resistance.

Door manufacturers such as Falcon Strebord, Halspan, Flamebreak etc advise: Surface mounted automatic drop seals may be used where the fitting of these does not require the removal of any core material.
