J9502MB

Code: J9502MB

£6.05

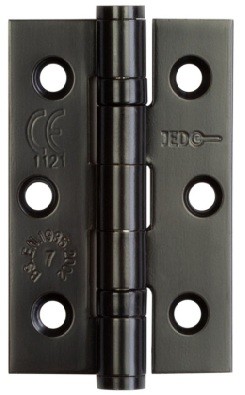

A Grade 7 stainless steel ball bearing hinge is a heavy-duty hinge that supports doors up to 40kg. The ball bearings ensure smooth opening and closing, making it ideal for frequent use in commercial and residential doors, sold in pairs. 76x50mm Black.

Tab 1

KEY FEATURES:

Finish: antique brass, dark bronze, electro brassed, black, polished stainless steel, satin stainless steel & satin brass
Size: With dimensions of 76x50mm,
Standards: BS EN 1935:2002
Mechnical Cycles: 200,000
Certification: Certified under UKCA 1121 and CE 2812 standards
Grade 7 Classification: Meets the Grade 7 standard, providing assurance of durability and strength in demanding environments which supports doors up to 40kg with 3 hinges
Corrosion Grade: Grade 4
Fire Resistance: FD30
Fittings Included: Comes complete with 12 x wood screws (Thread Diameter: 4mm, Thread Length: 22mm).
Usage: Ideal for both commercial and residential settings where reliability and safety are essential.
Technical Specifications

Material	Solid Brass
Carrying Weight	Grade 7
Range	Jedo
Fire Rating	FD30/60
CE / UKCA	BS EN 1935
Certifire	Yes

KEY FEATURES:

Finish: antique brass, dark bronze, electro brassed, black, polished stainless steel, satin stainless steel & satin brass
Size: With dimensions of 76x50mm,
Standards: BS EN 1935:2002
Mechnical Cycles: 200,000
Certification: Certified under UKCA 1121 and CE 2812 standards
Grade 7 Classification: Meets the Grade 7 standard, providing assurance of durability and strength in demanding environments which supports doors up to 40kg with 3 hinges
Corrosion Grade: Grade 4
Fire Resistance: FD30
Fittings Included: Comes complete with 12 x wood screws (Thread Diameter: 4mm, Thread Length: 22mm).
Usage: Ideal for both commercial and residential settings where reliability and safety are essential.
Technical Specifications

Material	Solid Brass
Carrying Weight	Grade 7
Range	Jedo
Fire Rating	FD30/60
CE / UKCA	BS EN 1935
Certifire	Yes
