Karcher Design Sunrise ESB-SG Glass Sliding Door Gear
Code: 123
£ 1,157.40
KARCHER DESIGN SUNRISE ESB-SG GLASS SLIDING DOOR GEAR BOTTOM ROLLING FLOOR GUIDED SLIDING DOOR GEAR FOR GLASS DOORS 8MM - 12MM THICK



ESB-SG210 - Karcher Design - Bottom Rolling Floor Guided Sliding Door Gear For Glass Doors 8-12mm Thick - For Door Widths 910-1000mm - Track Length 2100mm


The Karcher Design Sunrise ESB-SG Sliding Door System Is Designed For Use On 8-12mm Thick Glass Doors Up To 150kg In Weight.

Suitable For Use For Glass Sliding Doors Between Rooms, Wall Openings Or For Entrances To Office Rooms.

Bottom Rolling Door Design With A Simple Guide Rail Located At The Top Of The Door, Which Can Be Ceiling / Soffit Mounted Of Wall Mounted.

The Karcher Design Sunrise Kit Generates An Impressive Optical Effect. Freely Visible Rollers On A Floor Running Rail Enables The Use Of Glass Surfaces Right Down To Floor Level. The Upper Guide Rail For Wall And Ceiling Installation Enables Flexible Use, Making This Sliding Door System Ideal For A Fast And Simple Modernisation Of Spaces.

Smooth Running Plastic Rollers Run Over A Floor Mounted Stainless Steel Track, Make This System Easy Fit With Low Maintenance.

Each Set Includes All The Main Components Needed To Install A Long Lasting, Smooth Running Glass Sliding Door.

Satin Stainless Steel Bottom Rollers And Guide Rails Provide A High Architectural Finish.



Diagram Showing A Single Sliding Door



Two kits can be fitted "end on" (next to each other) to allow for double doors.


Diagram Showing Two Sliding Door Kits Used Together For Use With Double Doors

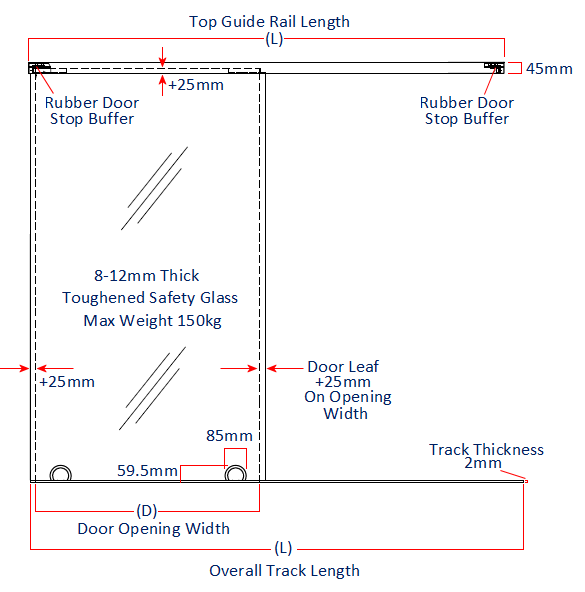

Dimensions And Track Lengths Available

Diagram showing dimensions of the Karcher Design Sunrise bottom rolling sliding door gear for glass doors

Fixing Options

Pre-drilled track allows for fixing in either the ceiling / soffit or face fixed into a wall.

Diagram showing how the Karcher Design Sunrise glass sliding door kit can be ceiling or wall mounted

Bottom Rollers





The Glass Doors Are Supported By And Run On Bottom Rollers, These Rollers Have Moulded Plastic Wheels That Are Shaped To The Same Design As The Bottom Guide Track.

Diagram showing the bottom rollers from the Karcher Design Sunrise sliding door kit



Drilling / Cut Out Requirements For The Glass







The Bottom Of The Glass Door Must Be Cut Out With Semi-Circular Holes To Allow The Bottom Rollers To Clamp On The Glass.




Glass cut out requirements for the Sunrise sliding door gear





Items Included Within The Karcher Design Sunrise Esb-Sg Glass Sliding Door Kit

1x Satin Stainless Steel Bottom Guide Rail Track

1x Satin Stainless Steel Top Guide Rail

2x Bottom Rollers

2x Buffer Door Stoppers





ESB-SG210 - Karcher Design - Bottom Rolling Floor Guided Sliding Door Gear For Glass Doors 8-12mm Thick - For Door Widths 910-1000mm - Track Length 2100mm


The Karcher Design Sunrise ESB-SG Sliding Door System Is Designed For Use On 8-12mm Thick Glass Doors Up To 150kg In Weight.

Suitable For Use For Glass Sliding Doors Between Rooms, Wall Openings Or For Entrances To Office Rooms.

Bottom Rolling Door Design With A Simple Guide Rail Located At The Top Of The Door, Which Can Be Ceiling / Soffit Mounted Of Wall Mounted.

The Karcher Design Sunrise Kit Generates An Impressive Optical Effect. Freely Visible Rollers On A Floor Running Rail Enables The Use Of Glass Surfaces Right Down To Floor Level. The Upper Guide Rail For Wall And Ceiling Installation Enables Flexible Use, Making This Sliding Door System Ideal For A Fast And Simple Modernisation Of Spaces.

Smooth Running Plastic Rollers Run Over A Floor Mounted Stainless Steel Track, Make This System Easy Fit With Low Maintenance.

Each Set Includes All The Main Components Needed To Install A Long Lasting, Smooth Running Glass Sliding Door.

Satin Stainless Steel Bottom Rollers And Guide Rails Provide A High Architectural Finish.



Diagram Showing A Single Sliding Door



Two kits can be fitted "end on" (next to each other) to allow for double doors.


Diagram Showing Two Sliding Door Kits Used Together For Use With Double Doors



Dimensions And Track Lengths Available

Diagram showing dimensions of the Karcher Design Sunrise bottom rolling sliding door gear for glass doors

Fixing Options

Pre-drilled track allows for fixing in either the ceiling / soffit or face fixed into a wall.

Diagram showing how the Karcher Design Sunrise glass sliding door kit can be ceiling or wall mounted

Bottom Rollers





The Glass Doors Are Supported By And Run On Bottom Rollers, These Rollers Have Moulded Plastic Wheels That Are Shaped To The Same Design As The Bottom Guide Track.

Diagram showing the bottom rollers from the Karcher Design Sunrise sliding door kit



Drilling / Cut Out Requirements For The Glass







The Bottom Of The Glass Door Must Be Cut Out With Semi-Circular Holes To Allow The Bottom Rollers To Clamp On The Glass.




Glass cut out requirements for the Sunrise sliding door gear





Items Included Within The Karcher Design Sunrise Esb-Sg Glass Sliding Door Kit

1x Satin Stainless Steel Bottom Guide Rail Track

1x Satin Stainless Steel Top Guide Rail

2x Bottom Rollers

2x Buffer Door Stoppers
